Guhring

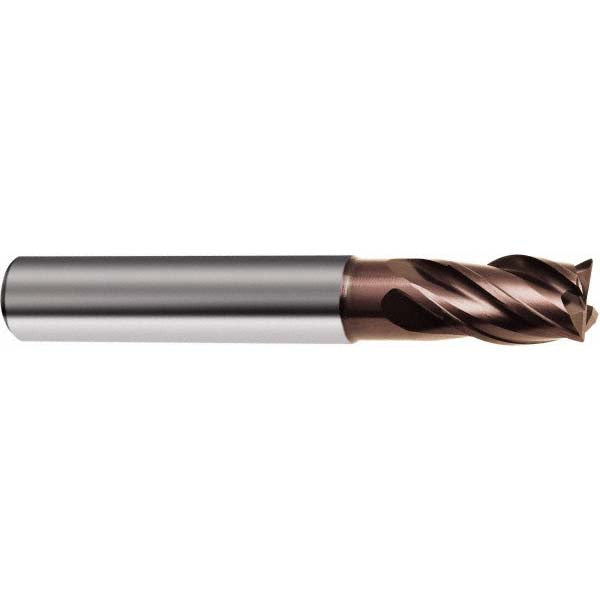

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9030530031700

MFR# 9030530031700Series 3053

$38.75List $49.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Guhring 9030530031700 is a 1/8 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1/2 length of cut, 1-1/2 overall length. Series 3053.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0040

Chamfer width0.0040

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut in1/2

Length typeRegular

Manufacturers catalog number9030530031700

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter toleranceh10

Number of flutes4

Overall length in1-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in1/2

Secondary workpiece materialCast Iron

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
