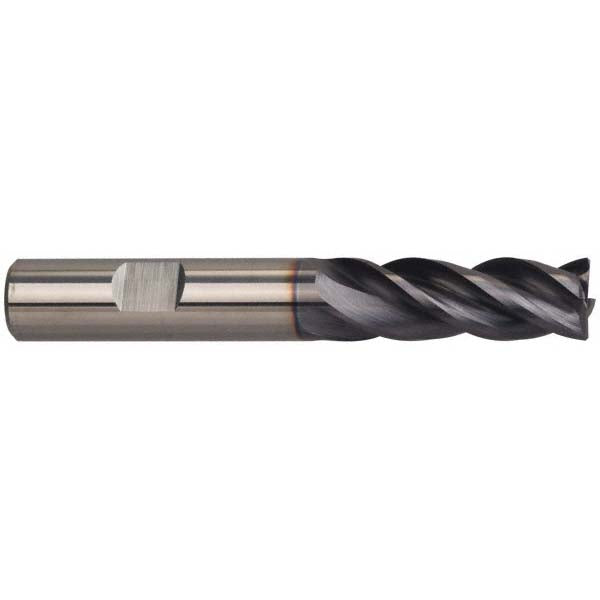

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9030770190500

MFR# 9030770190500Series 3077

$309.19List $396.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9030770190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/2 length of cut, 4 overall length. Series 3077.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Maximum helix angle42

Mill diameter in3/4

Mill diameter toleranceh10

Minimum helix angle40

Number of flutes4

Overall length in4

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
