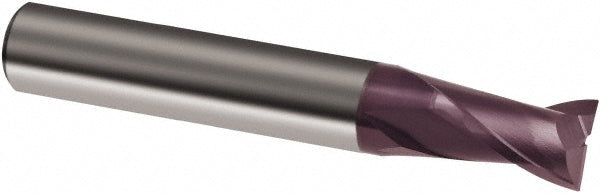

1/16" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030920015900

MFR# 9030920015900Series 3092

$18.18List $23.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes2

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030920015900 is a 1/16 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 1/8 length of cut, 1-1/2 overall length. Series 3092.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/8

Length typeStub

Material gradeProprietary

Mill diameter in1/16

Mill diameter toleranceh10

Number of flutes2

Overall length in1-1/2

Primary workpiece materialCast Iron; Steel

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
