Guhring

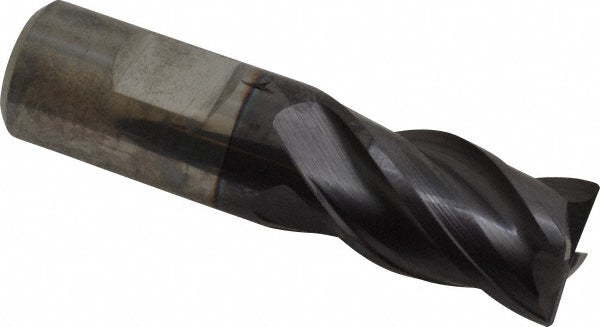

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030990190500

MFR# 9030990190500Series 3099

$229.42List $294.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030990190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 1 length of cut, 3 overall length. Series 3099.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut in1

Length typeStub

Material gradeProprietary

Maximum helix angle38

Mill diameter in3/4

Mill diameter toleranceh10

Minimum helix angle35

Number of flutes4

Overall length in3

Primary workpiece materialCast Iron; Steel

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
