Guhring

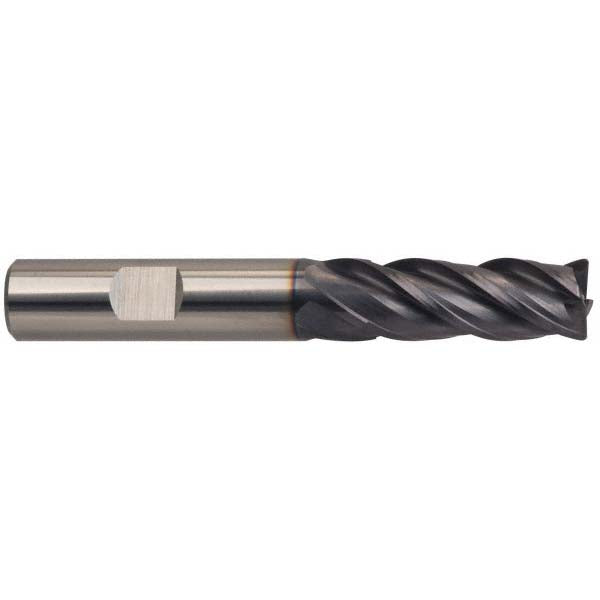

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031000190500

MFR# 9031000190500Series 3100

$285.05List $365.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031000190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 1-1/2 length of cut, 4 overall length. Series 3100.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Maximum helix angle38

Mill diameter in3/4

Mill diameter toleranceh10

Minimum helix angle35

Number of flutes4

Overall length in4

Primary workpiece materialCast Iron; Steel

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
