Guhring

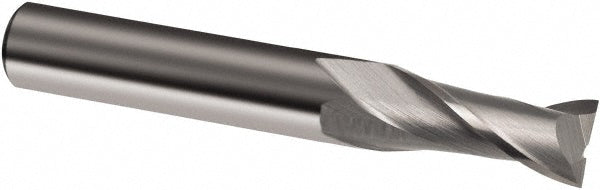

3/32" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031460023800

MFR# 9031460023800Series 3146

$17.93List $23.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031460023800 is a 3/32 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1/4 length of cut, 1-1/2 overall length. Series 3146.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/4

Length typeRegular

Material gradeProprietary

Maximum helix angle30

Mill diameter in3/32

Mill diameter toleranceh10

Number of flutes2

Overall length in1-1/2

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
