Guhring

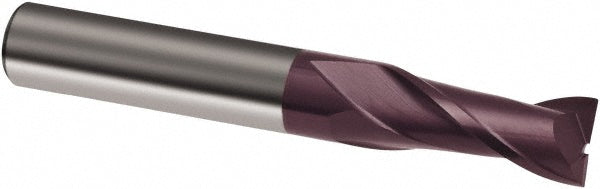

5/32" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031480039700

MFR# 9031480039700Series 3148

$30.77List $39.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes2

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031480039700 is a 5/32 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1/2 length of cut, 2 overall length. Series 3148.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length typeRegular

Material gradeProprietary

Mill diameter in5/32

Number of flutes2

Overall length in2

Shank diameter in3/16

Single or double endSingle

Variable helixNo

Variable indexNo
