Guhring

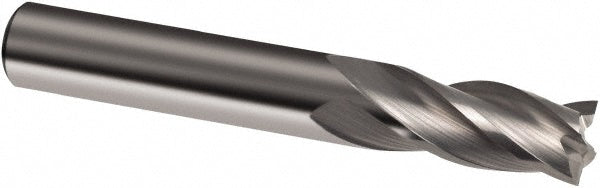

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031500190500

MFR# 9031500190500Series 3150

$234.55List $300.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031500190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/2 length of cut, 4 overall length. Series 3150.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Mill diameter in3/4

Number of flutes4

Overall length in4

Shank diameter in3/4

Single or double endSingle

Variable helixNo

Variable indexNo
