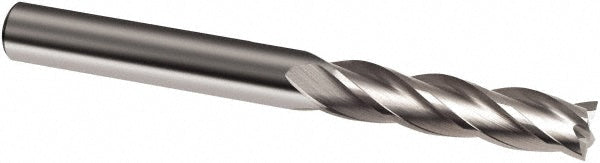

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031510190500

Guhring

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031510190500

MFR# 9031510190500Series 3151

$371.56List $476.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Guhring 9031510190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 3 length of cut, 6 overall length. Series 3151.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length typeExtra Long
Material gradeProprietary
Mill diameter in3/4
Number of flutes4
Overall length in6
Shank diameter in3/4
Single or double endSingle
Variable helixNo
Variable indexNo
