Guhring

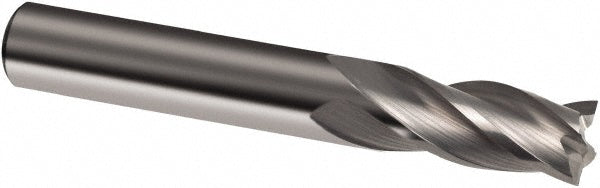

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031520031700

MFR# 9031520031700Series 3152

$25.64List $32.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031520031700 is a 1/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 1/2 length of cut, 2 overall length. Series 3152.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length typeLong

Material gradeProprietary

Maximum helix angle30

Mill diameter in1/8

Mill diameter toleranceh10

Number of flutes4

Overall length in2

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
