Guhring

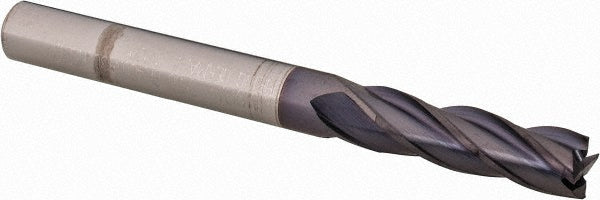

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031530063500

MFR# 9031530063500Series 3153

$32.50List $41.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031530063500 is a 1/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. 3/4 length of cut, 2-1/2 overall length. Series 3153.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length typeRegular

Material gradeProprietary

Maximum helix angle30

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
