Guhring

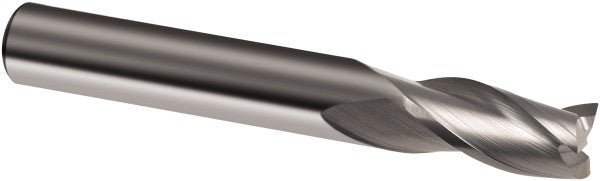

3/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031680190500

MFR# 9031680190500Series 3168

$247.03List $316.83 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031680190500 is a 3/4 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/2 length of cut, 4 overall length. Series 3168.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Maximum helix angle30

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes3

Overall length in4

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
