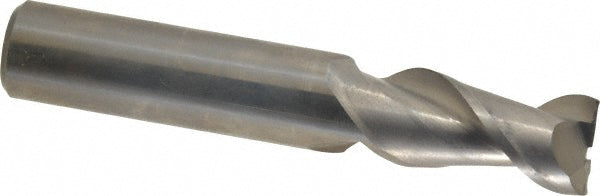

1/2" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740127000

Guhring

1/2" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740127000

MFR# 9031740127000Series 3174

$113.60List $145.69 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Guhring 9031740127000 is a 1/2 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1 length of cut, 3 overall length. Series 3174.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1
Length typeRegular
Material gradeProprietary
Mill diameter in1/2
Mill diameter toleranceh10
Number of flutes2
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
