Guhring

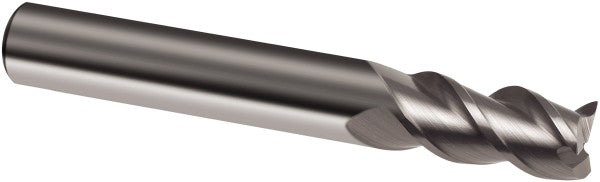

0.3346" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9032030085000

MFR# 9032030085000Series 3203

$57.88List $74.23 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9032030085000 is a 0.3346 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. Series 3203.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.6299

Length typeRegular

Material gradeProprietary

Mill diameter0.3346

Mill diameter toleranceh10

Number of flutes3

Overall length (mm)67.00

Primary workpiece materialCast Iron; Stainless Steel; Steel

Reach length (mm)27.00

Shank diameter0.3346

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
