Guhring

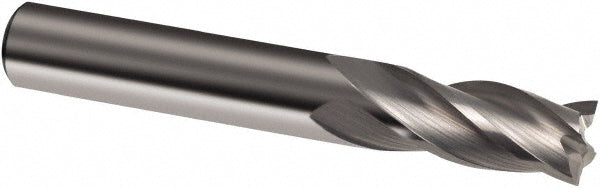

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9033040050000

MFR# 9033040050000Series 3304

$32.27List $41.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9033040050000 is a 0.1969 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. Series 3304.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.5118

Length typeRegular

Material gradeProprietary

Mill diameter0.1969

Mill diameter toleranceh10

Number of flutes4

Overall length (mm)50.00

Primary workpiece materialCast Iron; Stainless Steel; Steel

Reach length (mm)22.00

Shank diameter0.1969

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
