Guhring

0.2756" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9035400070000

MFR# 9035400070000Series 3540

$55.62List $71.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

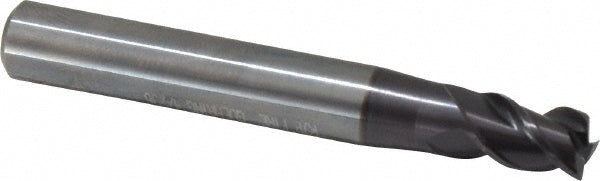

The Guhring 9035400070000 is a 0.2756 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. Series 3540.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.3150

Length typeStub

Material gradeProprietary

Mill diameter0.2756

Mill diameter toleranceh10

Number of flutes3

Overall length (mm)58.00

Primary workpiece materialCast Iron; Stainless Steel; Steel

Reach length (mm)16.40

Shank diameter0.3150

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
