Guhring

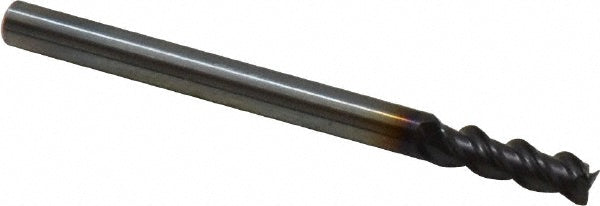

0.0980" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037410025000

MFR# 9037410025000Series 3741

$34.75List $44.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9037410025000 is a 0.0980 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. Series 3741.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.2760

Length typeRegular

Material gradeProprietary

Mill diameter0.0980

Mill diameter toleranceh10

Number of flutes3

Overall length (mm)32.00

Primary workpiece materialCast Iron; Stainless Steel; Steel

Reach length (mm)9.00

Shank diameter0.0984

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
