Guhring

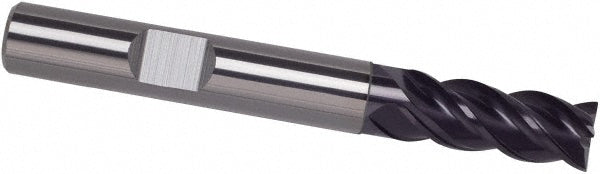

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042520095200

MFR# 9042520095200Series 4252

$142.43List $182.67 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9042520095200 is a 3/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 2-1/4 length of cut, 4 overall length. Series 4252.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut in2-1/4

Length typeExtra Long

Material gradeProprietary

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes4

Overall length in4

Primary workpiece materialCast Iron; Steel

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
