Guhring

1" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042520254000

MFR# 9042520254000Series 4252

$628.63List $806.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

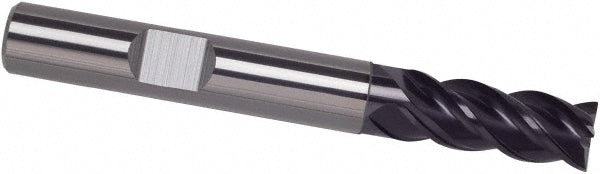

The Guhring 9042520254000 is a 1 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 3-1/8 length of cut, 6 overall length. Series 4252.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut in3-1/8

Length typeExtra Long

Material gradeProprietary

Mill diameter in1

Mill diameter toleranceh10

Number of flutes4

Overall length in6

Primary workpiece materialCast Iron; Steel

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter in1

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
