Guhring

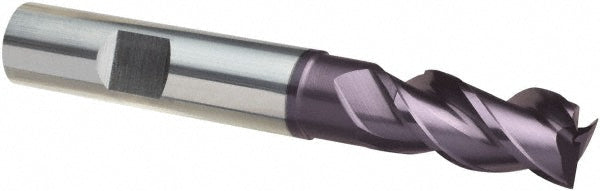

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042550063500

MFR# 9042550063500Series 4255

$50.47List $64.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9042550063500 is a 1/4 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for stainless steel, steel. 1/2 length of cut, 2-1/2 overall length. Series 4255.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle41; 43; 45

Length of cut in1/2

Length typeRegular

Material gradeProprietary

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes3

Overall length in2-1/2

Primary workpiece materialStainless Steel; Steel

Reach length0.8800

Secondary workpiece materialCast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
