Guhring

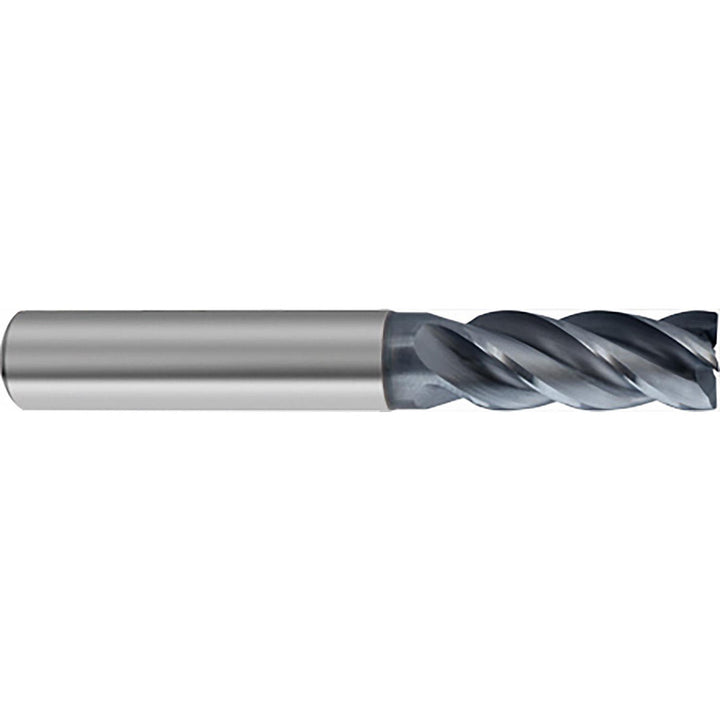

0.0394" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064780010000

MFR# 9064780010000Series 6478

$45.26List $58.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Guhring 9064780010000 is a 0.0394 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. Series 6478.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut0.1181

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter0.0394

Number of flutes4

Overall length (mm)50.00

Reach length (mm)4.00

Shank diameter in1

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
