Guhring

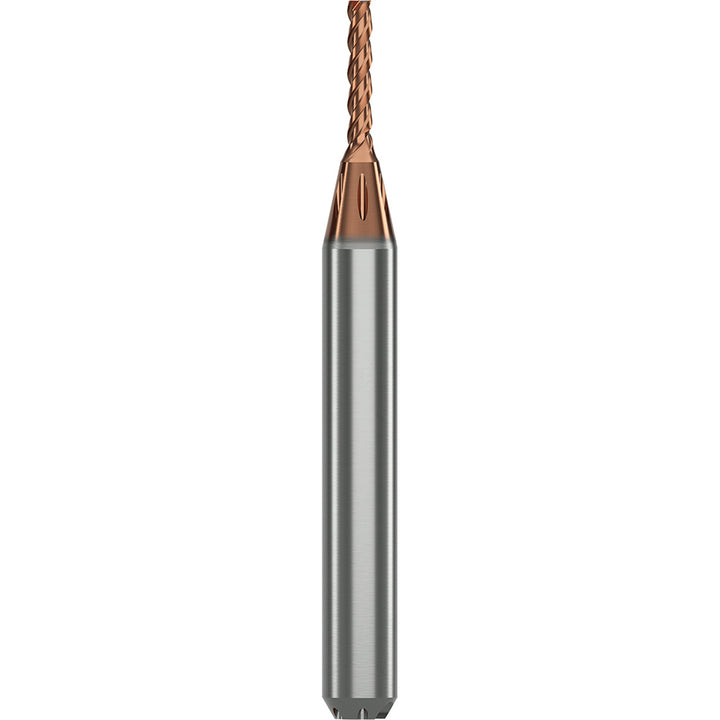

5/64" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, Durox - Guhring 9068090019800
MFR# 9068090019800Series 6809
$115.77List $148.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/64
Flutes3
MaterialSolid Carbide
CoatingDurox
Description
The Guhring 9068090019800 is a 5/64 3-flute Solid Carbide (Ultra Fine Grain) corner radius & corner chamfer end mill with a Durox finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 2-1/4 overall length. Series 6809.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDurox
Coolant throughYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut0.3890
Length typeExtra Long
Manufacturers catalog number9068090019800
Material gradeUltra Fine Grain
Material removal typeRoughing & Finishing
Mill diameter in5/64
Mill diameter toleranceh8
Number of flutes3
Overall length in2-1/4
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length (mm)20.00
Secondary workpiece materialHard Material
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
