Guhring

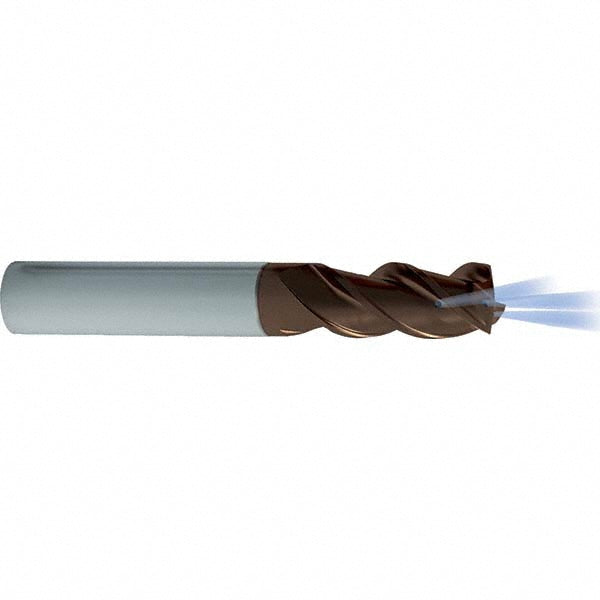

1/2" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9068720127000

MFR# 9068720127000Series 6872

$139.18List $178.51 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Guhring 9068720127000 is a 1/2 3-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8 length of cut, 3 overall length. Series 6872.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0070

Chamfer width0.0070

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut in5/8

Length typeRegular

Manufacturers catalog number9068720127000

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1/2

Mill diameter toleranceh10

Neck diameter0.4800

Number of flutes3

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1-1/8

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
