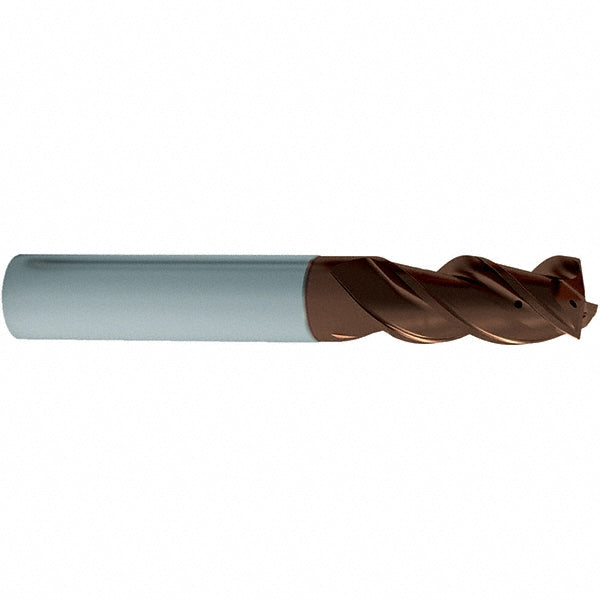

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9068730063500

MFR# 9068730063500Series 6873

$102.89List $131.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Guhring 9068730063500 is a 1/4 3-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/2 length of cut, 2-1/2 overall length. Series 6873.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0040

Chamfer width0.0040

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughYes

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut in1/2

Length typeRegular

Manufacturers catalog number9068730063500

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter toleranceh10

Neck diameter0.2380

Number of flutes3

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in7/8

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
