Guhring

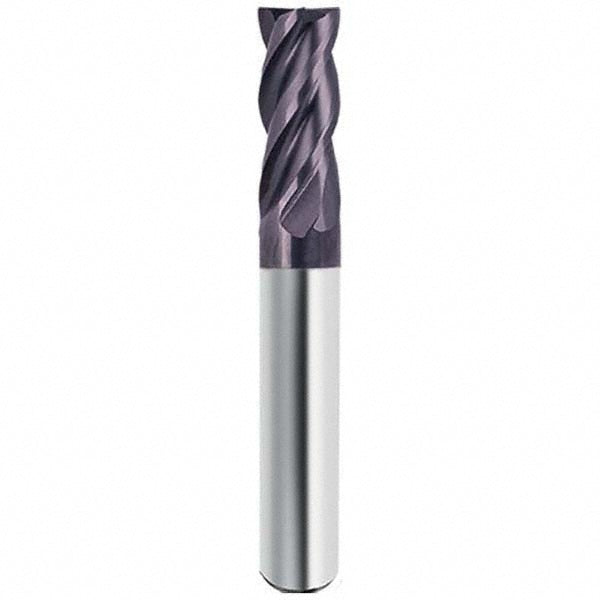

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199590127000

MFR# 9199590127000Series 19959

$80.67List $103.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199590127000 is a 1/2 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1 length of cut, 3 overall length. Series 19959.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle35; 38

Length of cut in1

Length typeStandard

Material gradeProprietary

Maximum helix angle38

Mill diameter in1/2

Mill diameter tolerancee8

Minimum helix angle35

Number of flutes4

Overall length in3

Secondary workpiece materialHard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes
