Harvey Tool

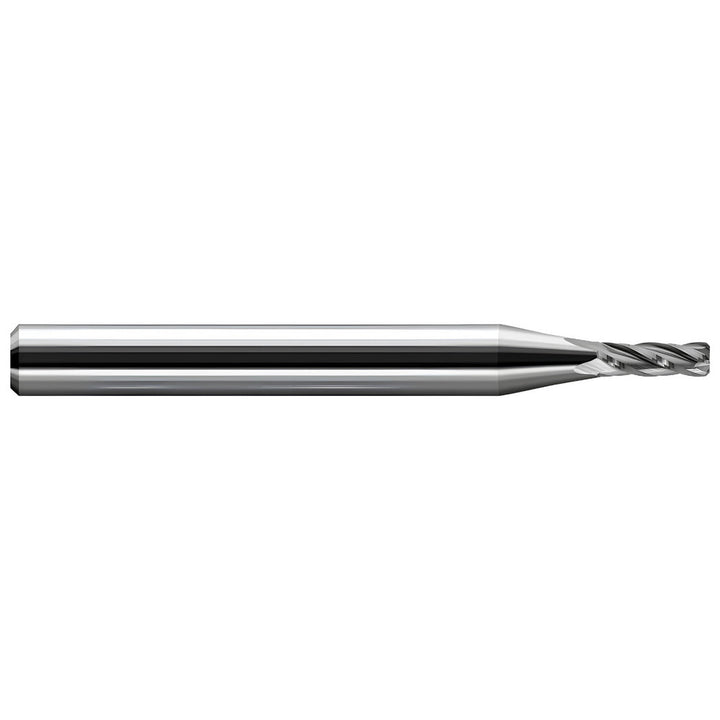

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Harvey Tool 751116-C3

MFR# 751116-C3Series Miniature End Mills

$56.62List $66.11 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 751116-C3 is a 1/4 4-flute Solid Carbide corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series Miniature End Mills.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length0.0300

Chamfer width0.0300

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Length of cut in3/4

Length typeRegular

Manufacturers catalog number751116-C3

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in3/4

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
