Kennametal

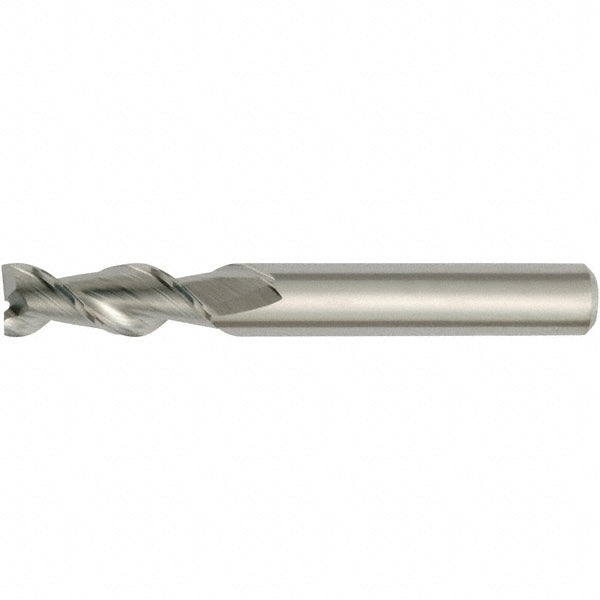

0.2360" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Kennametal 1199811

MFR# 1199811Cat# F2AA0600ADL45Series F2AA

$67.74List $86.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 1199811 is a 0.2360 2-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill. Suited for non-ferrous metal. Series F2AA.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer width0.0039

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleHigh

Length of cut0.6299

Length typeRegular

Manufacturers catalog numberF2AA0600ADL45

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.2360

Mill diameter tolerancee8

Number of flutes2

Overall length (mm)57.00

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length (mm)10.00

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
