Kennametal

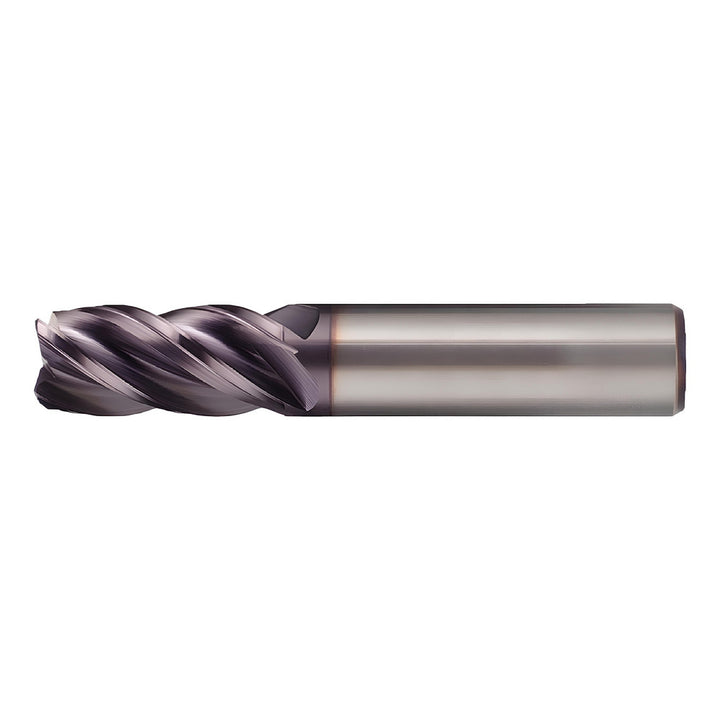

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 3331468

MFR# 3331468Cat# HPHVT500S4125CHSeries HPHV

$182.45List $234.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3331468 is a 1/2 4-flute Solid Carbide (KC643M) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series HPHV.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0197

Chamfer width0.0197

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog numberHPHVT500S4125CH

Material gradeKC643M

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Superalloys & Titanium

Reach length in1-1/4

Shank diameter in1/2

Shank diameter tolerance+0.00000 to -0.00035 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
