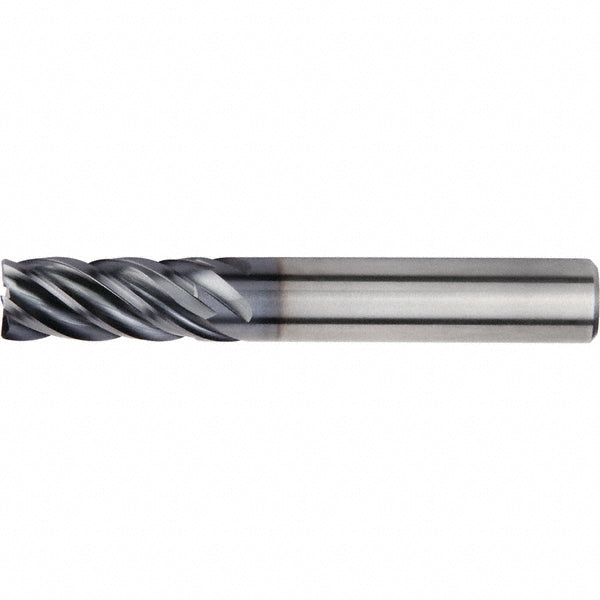

0.1969" 5; 5; 5; 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 3524412

MFR# 3524412Series HARVI UCDE

$71.53List $91.74 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5; 5; 5; 5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3524412 is a 0.1969 5; 5; 5; 5-flute Solid Carbide (KC643M) corner radius & corner chamfer end mill with a AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron. 2.2440 overall length. Series HARVI UCDE.

Specifications

CentercuttingNo

ChipbreakerNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Coating finishAlTiN

Coolant throughNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut0.5118

Length typeRegular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular

Material gradeKC643M

Mill diameter0.1969

Number of flutes5; 5; 5; 5

Overall length2.2440

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron

Shank diameter0.2362

Shank typeStraight

Single or double endSingle; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single

Variable helixNo

Variable indexNo
