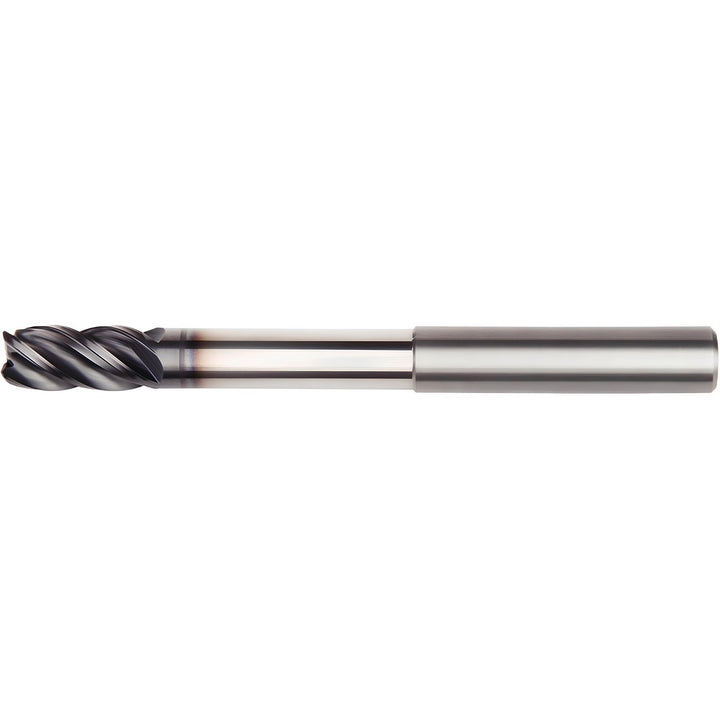

0.6299" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 5357002

MFR# 5357002Cat# UADE1600A4ALSeries UADE

$674.02List $864.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5357002 is a 0.6299 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series UADE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.50

Chamfer width0.0197

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut1.2598

Length typeRegular

Manufacturers catalog numberUADE1600A4AL

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter0.6299

Mill diameter tolerance-0.032 to -0.059 mm

Neck diameter0.5906

Number of flutes4

Overall length (mm)149.99

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length3.9370

Shank diameter (mm)16.00

Shank diameter tolerance+0.000 to -0.011 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
