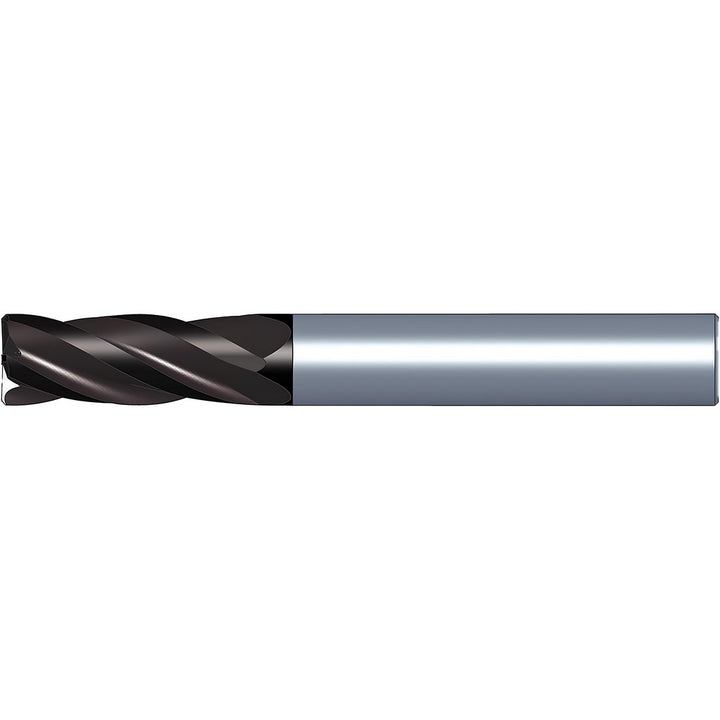

0.2165" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824176

MFR# 5824176Cat# 4CH0550DL013ASeries 4CH

$47.01List $60.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiN/TiAlN

Description

The Kennametal 5824176 is a 0.2165 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN/TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. Series 4CH.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.10

Chamfer width0.0039

ChipbreakerNo

Coating finishTiN/TiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut0.5118

Length typeRegular

Manufacturers catalog number4CH0550DL013A

Material gradeKC633M

Material removal typeRoughing & Finishing

Mill diameter0.2165

Mill diameter tolerance-0.020 to -0.038 mm

Number of flutes4

Overall length (mm)57.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length (mm)13.00

Shank diameter (mm)6.00

Shank diameter tolerance+0.000 to -0.008 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
