Kennametal

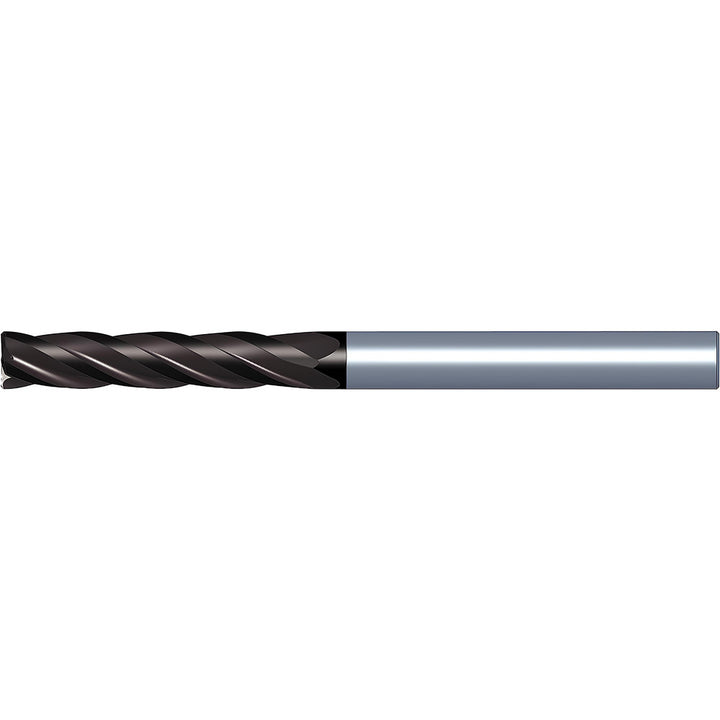

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824411
MFR# 5824411Cat# 4CH0750IL300ASeries 4CH
$472.66List $606.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Kennametal 5824411 is a 3/4 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN/TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 3 length of cut, 6 overall length. Series 4CH.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishTiN/TiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in3
Length typeRegular
Manufacturers catalog number4CH0750IL300A
Material gradeKC633M
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance-0.040 to -0.073 mm
Number of flutes4
Overall length in6
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length in3
Shank diameter in3/4
Shank diameter tolerance+0.000 to -0.013 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
