Kennametal

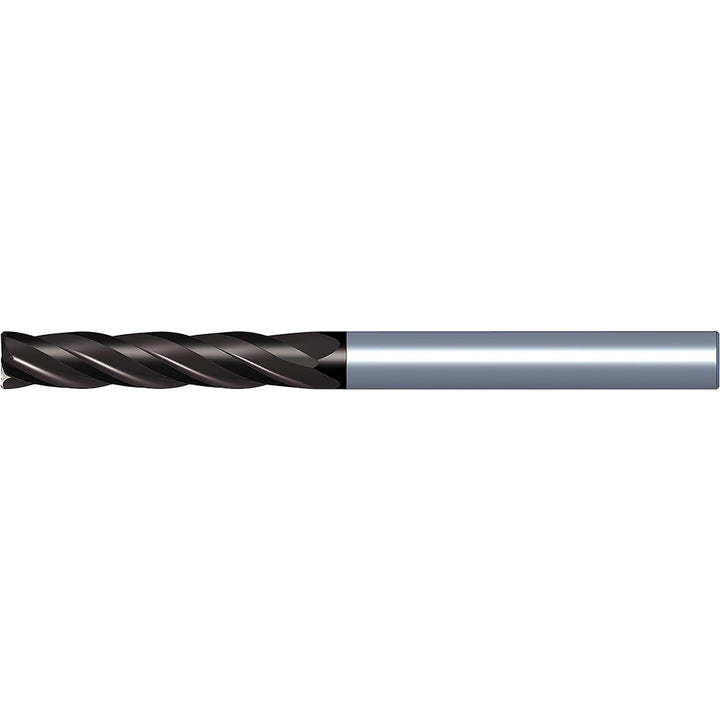

1" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824430
MFR# 5824430Cat# 4CH1000IR225BSeries 4CH
$462.45List $593.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Kennametal 5824430 is a 1 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN/TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 2-1/4 length of cut, 5 overall length. Series 4CH.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishTiN/TiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in2-1/4
Length typeRegular
Manufacturers catalog number4CH1000IR225B
Material gradeKC633M
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance-0.040 to -0.073 mm
Number of flutes4
Overall length in5
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length in2-1/4
Shank diameter in1
Shank diameter tolerance+0.000 to -0.013 mm
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
