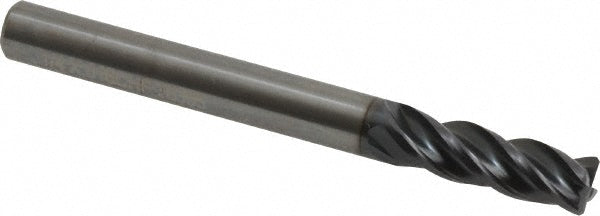

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - OSG VG436-2501

MFR# VG436-2501Series VG436

$27.84List $35.71 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG VG436-2501 is a 1/4 4-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series VG436.

Specifications

Additional informationShouldering; Slotting

CentercuttingYes

Chamfer angle45

Chamfer length0.0160

Chamfer width0.0160

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix angle35

Helix styleMedium

Length of cut in3/4

Length typeStub

Manufacturers catalog numberVG436-2501

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0015 in

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in3/4

Secondary workpiece materialHard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
