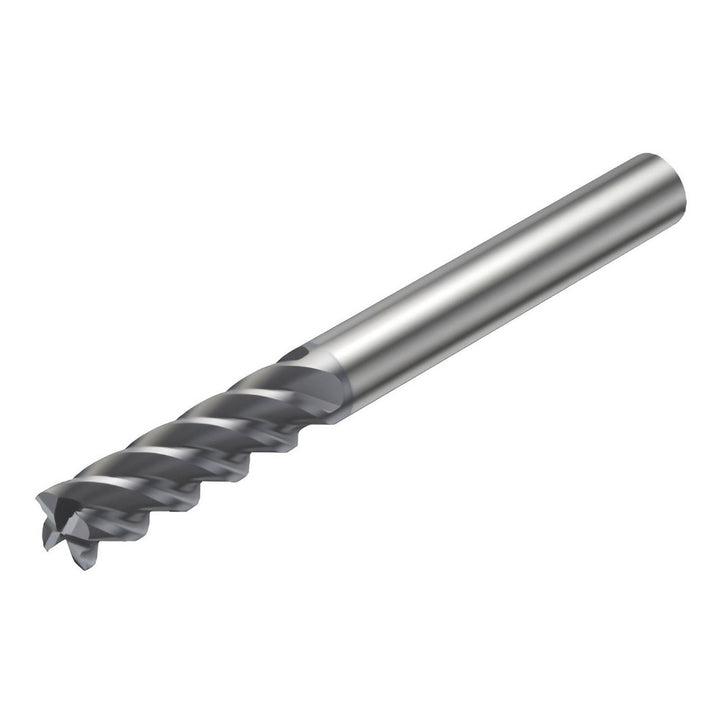

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Sandvik Coromant 7045763

MFR# 7045763Cat# 1P360-0476-XASeries 1P360

$95.16List $122.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Sandvik Coromant 7045763 is a 3/16 4-flute Solid Carbide (1620) corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series 1P360.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length0.0040

Chamfer width0.0040

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Helix styleHigh

Length of cut in3/4

Length typeExtra Long

Manufacturers catalog number1P360-0476-XA

Material grade1620

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter toleranceh10

Neck diameter0.1875

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in3/4

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
