Seco

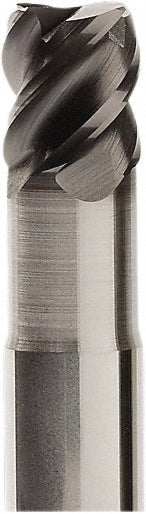

0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, MEGA-64 - Seco 02462687

MFR# 02462687Cat# 170040.0-MEGA-64Series JHP170

$93.25List $115.57 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 02462687 is a 0.1575 4-flute Solid Carbide corner radius & corner chamfer end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JHP170.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.10

Chamfer width0.0039

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle50

Helix styleHigh

Length of cut0.1575

Length typeShort

Manufacturers catalog number170040.0-MEGA-64

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance0.020 to 0.040 mm

Neck diameter0.1460

Number of flutes4

Overall length (mm)5.00

PitchNormal

Primary workpiece materialHard Material

Reach length0.3150

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
