Accupro

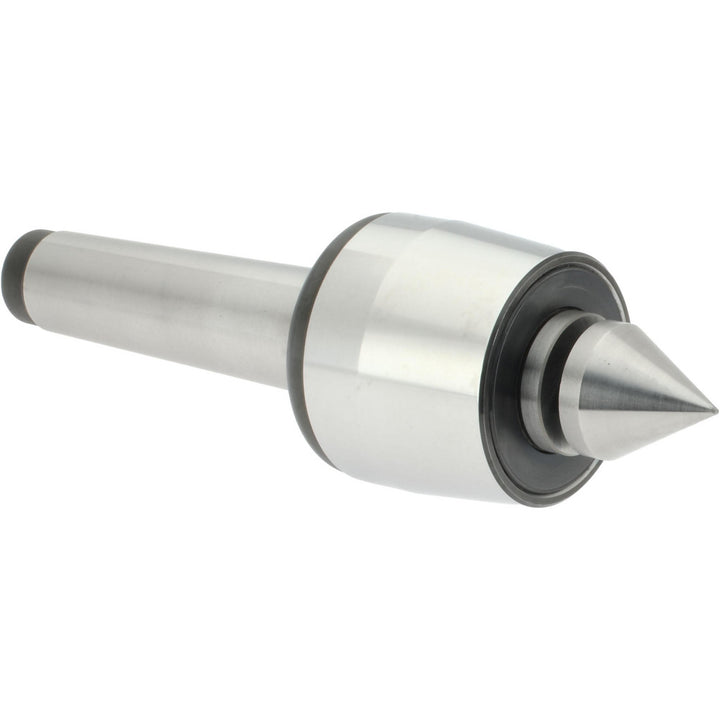

Lathe Center - Accupro 781020
MFR# 781020
$577.52List $724.93
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781020 is a lathe center.
Specifications
Accuracy0.005mm
Carbide tipped pointNo
Head diameter (mm)50.00
Head length1.7126
Included angle60
Includes60 Degree H Insert
Load capacity330.70lb
Maximum rpm5000
Maximum workpiece weight kg150.00
Maximum workpiece weight lb330.69
Overall length (mm)153.50
Point diameter (mm)24.00
Point length (mm)51.50
Point styleInterchangeable
Point to gauge line (mm)74.50
Shank length3.3465
Shank typeMorse Taper
Taper sizeMT3
