Accupro

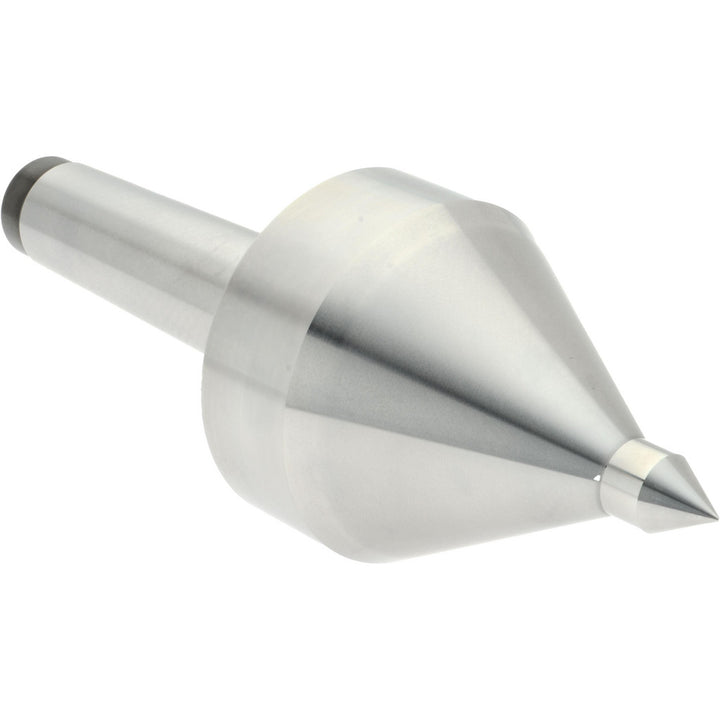

Lathe Center - Accupro 781023
MFR# 781023
$396.66List $497.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781023 is a lathe center.
Specifications
Accuracy0.003mm
Carbide tipped pointNo
Head diameter (mm)78.00
Head length1.0354
Included angle60
Load capacity1234.59lb
Maximum rpm4500
Maximum workpiece weight kg560.00
Maximum workpiece weight lb1234.59
Overall length (mm)211.50
Point diameter (mm)16.00
Point length (mm)77.20
Point styleStandard
Point to gauge line (mm)111.50
Shank length4.2520
Shank typeMorse Taper
Taper sizeMT4
