Accupro

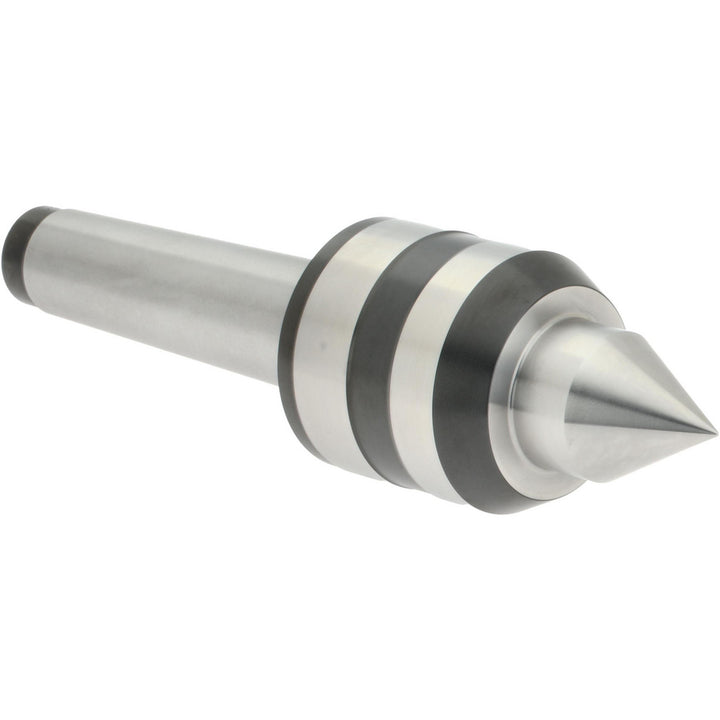

Lathe Center - Accupro 781024
MFR# 781024
$224.87List $282.27
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781024 is a lathe center.
Specifications
Accuracy0.003mm
Carbide tipped pointNo
Head diameter (mm)44.50
Head length1.7323
Included angle60
Load capacity881.85lb
Maximum rpm5000
Maximum workpiece weight kg400.00
Maximum workpiece weight lb881.85
Overall length (mm)161.50
Point diameter (mm)25.00
Point length (mm)32.50
Point styleStandard
Point to gauge line (mm)81.80
Shank length3.3465
Shank typeMorse Taper
Taper sizeMT3
