Allied Machine and Engineering
0.1340" IC Solid Carbide Insert, Grade CTPP430 - Allied Machine and Engineering 11821210
MFR# 11821210Series EC 18
$20.74List $24.44
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCTPP430
MaterialSolid Carbide
Description

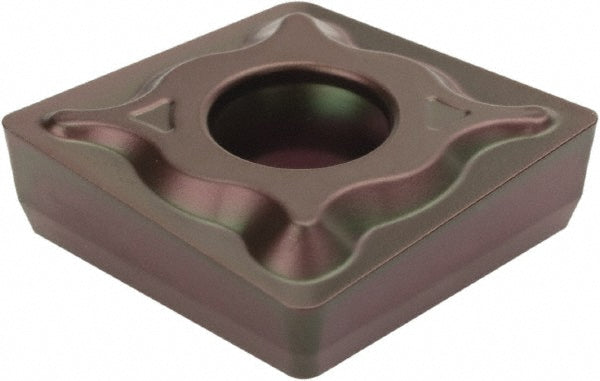

The Allied Machine and Engineering 11821210 is a solid carbide indexable insert, grade CTPP430. Suited for universal.
Specifications
ChipbreakerEN
Corner radius0.0160
Cutting directionNeutral
Hole diameter0.1340
Included angle degree88
Inscribed circle0.1340
Insert materialSolid Carbide
Insert size09T304
Insert size code09
Insert styleXCNT
Manufacturer gradeCTPP430
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 9001:2015
Thickness0.1560
Width0.3540
