Allied Machine and Engineering

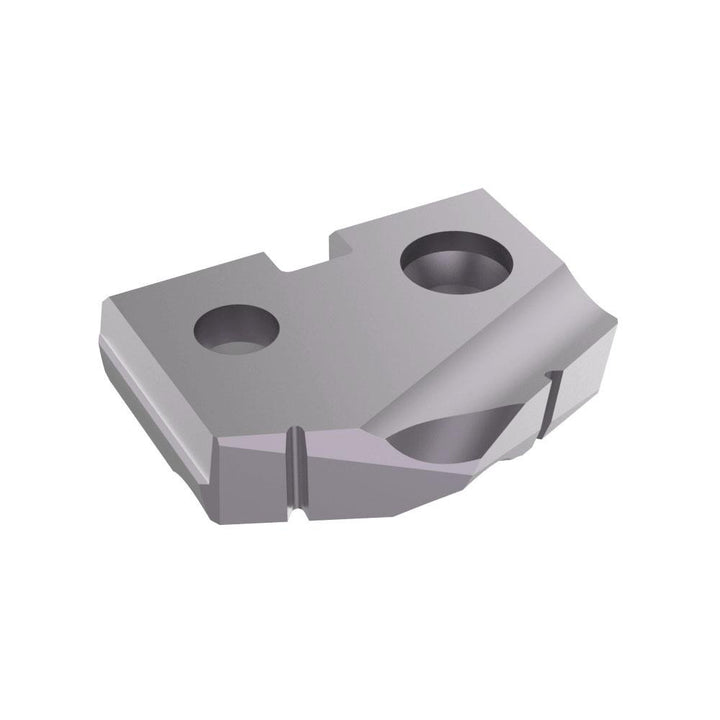

Solid Carbide Insert, Grade C5 (P40), TiAlN - Allied Machine and Engineering 1C51A-0027
MFR# 1C51A-0027Series T-A
$69.09List $82.62
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeC5 (P40)
MaterialSolid Carbide
CoatingTiAlN
Description
The Allied Machine and Engineering 1C51A-0027 is a solid carbide indexable insert, grade C5 (P40), TiAlN coated. Suited for steel, hard material.
Specifications
Coating finishTiAlN
Diameter inch fraction27/32
Insert materialSolid Carbide
Manufacturer gradeC5 (P40)
Material gradeC5
Point angle132
Primary workpiece materialSteel; Hard Material
Series code seat size1
Thickness0.1563
