Carbide Insert, Grade C2 (K20), AM300 - Allied Machine and Engineering 4C22P-0110

Allied Machine and Engineering

Carbide Insert, Grade C2 (K20), AM300 - Allied Machine and Engineering 4C22P-0110

MFR# 4C22P-0110Series GEN2 T-A

$89.76List $107.34 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeC2 (K20)
MaterialCarbide
CoatingAM300

Description

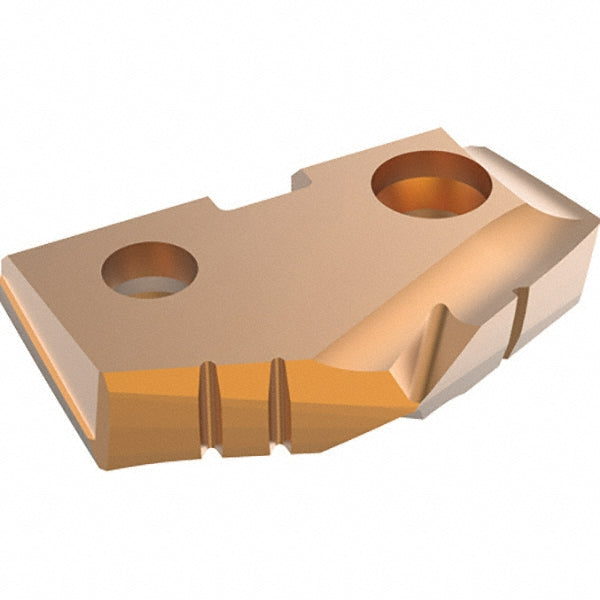

The Allied Machine and Engineering 4C22P-0110 is a carbide indexable insert, grade C2 (K20), AM300 coated. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Coating finishAM300
Diameter inch fraction1-5/16
Height0.64
Insert materialCarbide
Manufacturer gradeC2 (K20)
Material gradeC2
Point angle132
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
System of measurementFractional Inch
Thickness0.1875
