Allied Machine and Engineering
Solid Carbide Insert, AM480 - Allied Machine and Engineering 4T-140408-H
MFR# 4T-140408-H
$24.11List $27.54
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingAM480
Description

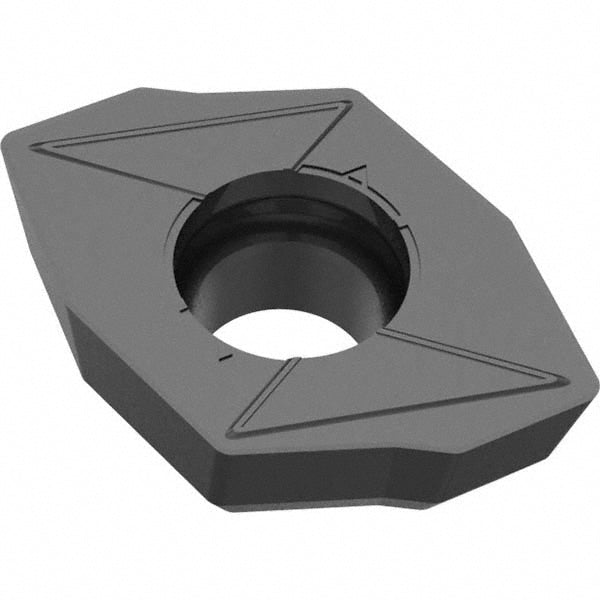

The Allied Machine and Engineering 4T-140408-H is a solid carbide indexable insert, AM480 coated.
Specifications
Coating finishAM480
Coating processPVD
Corner radius (mm)0.80
Cutting directionRight Hand
Insert materialSolid Carbide
Insert size140408
Insert style4T
Length (mm)14.40
Material gradeP30
Relief angle13
