Allied Machine and Engineering

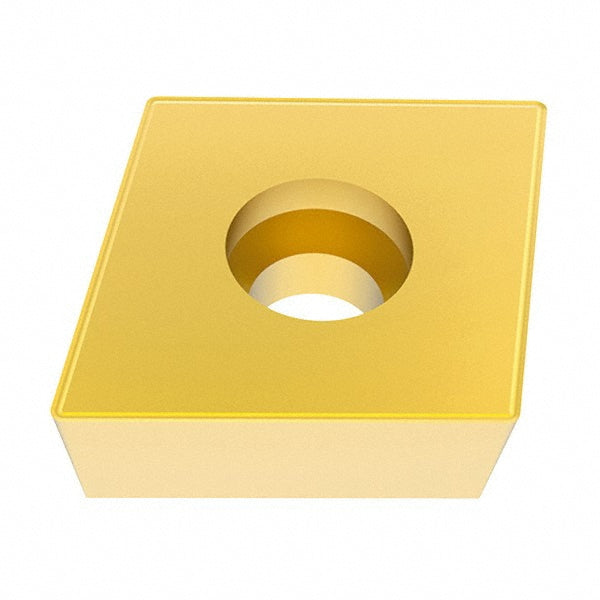

0.2500" IC Carbide Insert - Allied Machine and Engineering CCGT-060202
MFR# CCGT-060202
$14.69List $17.29
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialCarbide
Description
The Allied Machine and Engineering CCGT-060202 is a carbide indexable insert. Suited for universal.
Specifications
Ansi codeANSI CCGT 2(1.5)0.5
Corner radius0.0079
Included angle degree80
Inscribed circle0.2500
Insert materialCarbide
Insert size060202
Insert size code06
Insert styleCCGT
Iso 90012015
Length0.2488in
Primary workpiece materialUniversal
Relief angle7
ShapeDiamond
StandardsANSI
Thickness0.0941in
