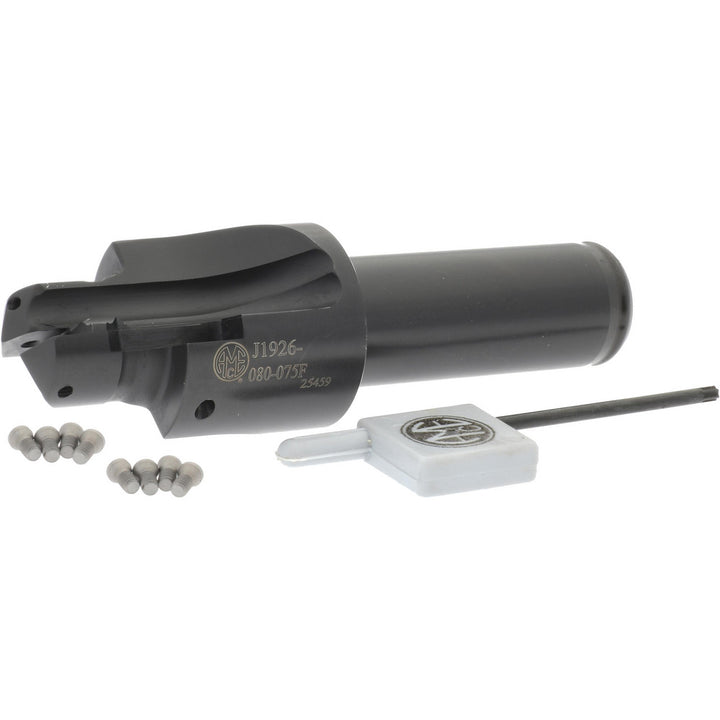

Indexable Counterbores & Porting Tools - Allied Machine and Engineering J1926-080-075F
MFR# J1926-080-075FSeries AccuPort 432
$621.41List $660.96
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering J1926-080-075F indexable counterbores & porting tools. Suited for universal. Series AccuPort 432.
Specifications
CoatedCoated
Compatible insert size code450H-0022; 4C10H-0022
Compatible insert styleJ1926
Head length1.9820
Number of porting inserts2
Overall length3.9510
Pilot diameter0.6880
Pilot insert typeSpade Blade Insert
Porting angle15
Porting angle length0.1060
Porting diameter0.8130
Port standard designationIS0 11926-1; SAE J1926-1/MS-16142; IS0 11926-1; SAE J1926-1/MS-16142
Port thread size3/4-16; 3/4-16
Primary workpiece materialUniversal
Seal angle15
Seal angle length0.106in
Shank diameter in0.75in; 19.1mm
Shank length1.9690
Spotface diameter1.2070
Through coolantNo; Yes
Tube dash number8
