0.2500" IC Solid Carbide Insert - Allied Machine and Engineering TCMT-110208
MFR# TCMT-110208
$10.77List $12.66
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
Description

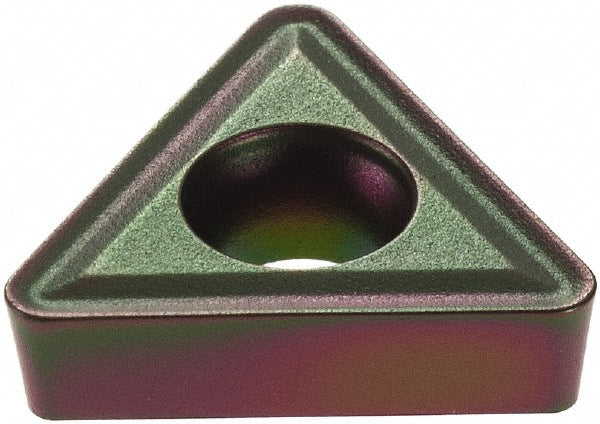

The Allied Machine and Engineering TCMT-110208 is a solid carbide indexable insert. Suited for universal.
Specifications
Ansi codeANSI TCGT 2(1.5)2
Corner radius0.0311
Included angle degree60
Inscribed circle0.2500
Insert materialSolid Carbide
Insert size110208
Insert size code11
Insert styleTCMT
Length0.3874
Material gradeC5
Primary workpiece materialUniversal
Relief angle7
ShapeTriangle
StandardsISO 9001:2015
Thickness0.0941
