Allied Machine and Engineering
Solid Carbide Insert, AM420 - Allied Machine and Engineering XTP20-20.64
MFR# XTP20-20.64Series GEN3SYS XT Pro
$130.49List $152.96
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingAM420
Description

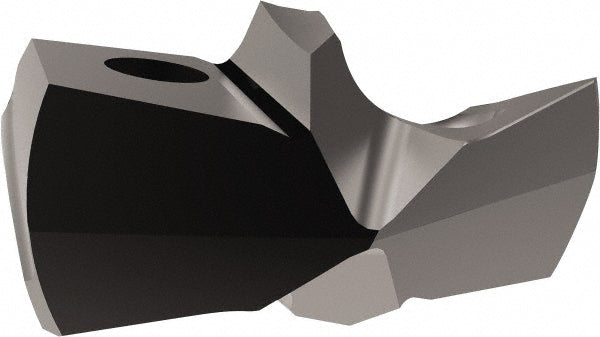

The Allied Machine and Engineering XTP20-20.64 is a solid carbide indexable insert, AM420 coated. Suited for steel.
Specifications
Coating finishAM420
Diameter inch fraction13/16
Insert materialSolid Carbide
Point angle140
Primary workpiece materialSteel
Series code seat size20
System of measurementFractional Inch
