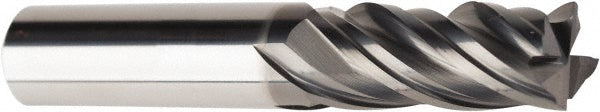

0.5000" 4-Flute Solid Carbide Single End Mill, AlCrN - American Tool Service 664-5000

American Tool Service

0.5000" 4-Flute Solid Carbide Single End Mill, AlCrN - American Tool Service 664-5000

MFR# 664-5000Series 664

$78.56List $100.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlCrN

Description

The American Tool Service 664-5000 is a 0.5000 4-flute Solid Carbide (Micrograin) single end mill with a AlCrN finish for longer tool life. 1-1/2 length of cut. Series 664.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/2
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Variable helixYes
