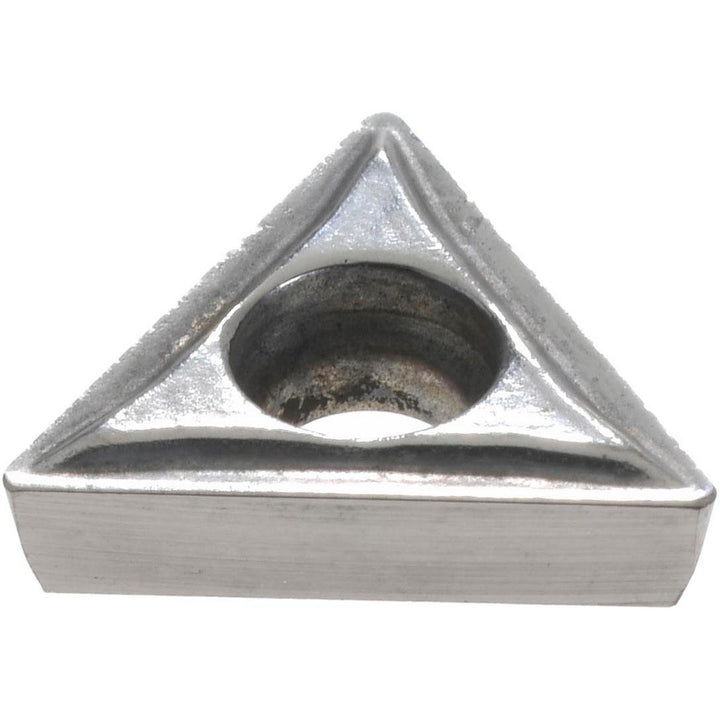

T - Triangle 1/4" IC Carbide Insert, Grade C5/C6 - APT TPGH21.51 C5/C6

APT

T - Triangle 1/4" IC Carbide Insert, Grade C5/C6 - APT TPGH21.51 C5/C6

MFR# TPGH21.51 C5/C6ISO/ANSI# TPGH110204Cat# TPGH21.51Series TPGH

$6.15List $7.88 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeC5/C6
MaterialCarbide

Description

The APT TPGH21.51 C5/C6 is a carbide indexable insert, grade C5/C6. Suited for steel.

Specifications

Ansi insert codeTPGH21.51
Ansi size code21.51
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1200
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTPGH
Insert thickness in3/32
Iso insert codeTPGH110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog numberTPGH21.51
Manufacturer gradeC5/C6
Material gradeC6
Maximum depth of cut0.1442
Multi use applicationTurning; Counterboring; Boring; Chamfering
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4330
Wiper edgeNo
