Associated Spring Raymond

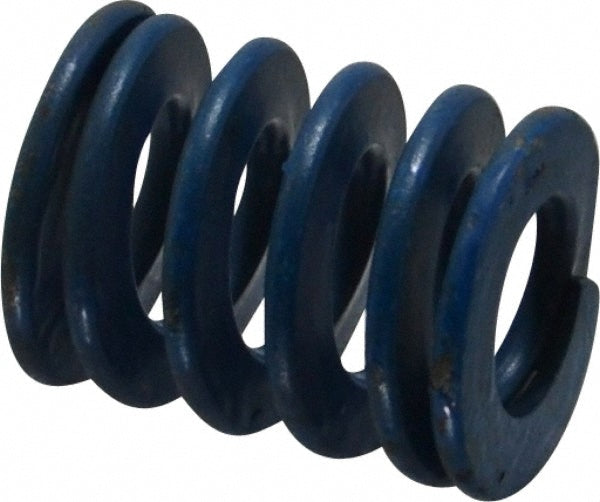

Die Spring - Associated Spring Raymond 103-606
MFR# 103-606
$9.85List $12.37
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 103-606 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in1-1/2
Hole diameter in1-1/4
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.7500
Maximum deflection load lb372.00
Rod diameter in5/8
Spring rate496.00
StandardsANAB Accredited
Wire shapeTrapezoidal
